Mastering Turbo Streams in Rails 8

Seamless Dynamic Updates with Turbo Frames, AJAX, and Stream Responses# Rails8Series — Episode 6

These examples demonstrate how to use Turbo Streams in Rails 8 to handle dynamic updates of specific parts of the view. Here’s an explanation of each approach:

Check Out This Hot Table! 🚀

This is the gateway to the heart of this story offering a glimpse into the journey ahead.🤗👉

0. Prelude:

<%= turbo_frame_tag "hot_table" do %>
  <%= render partial: 'shared/hot_table', locals: { data: @data } %>
<% end %>

Why it's "Hot":

• Dynamic Updates: Turbo Frames keep your UI fresh without full-page reloads.
• Reusable Partial: The shared/hot_table partial centralizes logic for easy updates.
• Seamless Integration: Use your controller to pass @data and let the magic happen!

Controller Example:

def show_hot_table
  @data = YourModel.recent_data
end

Add some styling flair and let your table sizzle with interactivity! 🔥

1.Turbo Stream Direct Replacement

Code:

<turbo-stream action="replace" target="<%= dom_id frame %>">
   <template>
     <%= render 'model', frame: frame %>
   </template>
</turbo-stream>

Explanation:

This is a direct Turbo Stream action.

action="replace": Replaces the content of the DOM element identified by the target.

target="<%= dom_id frame %>": Specifies the DOM element (usually identified by an ID or a CSS selector) to replace.

<template>: Contains the HTML to render inside the target element.

Usage:
This is often used in server-side rendered responses for updating specific parts of a page dynamically without refreshing the entire page. It requires Turbo Streams enabled in Rails.

2. Turbo Frame for Button Interaction

Code Overview:

View:

<%= turbo_frame_tag “test_button” do %>
   tag
<% end %>

<%= link_to admin_test_button_path, class: "btn btn-light", data: { turbo_frame: 'test_button', turbo_prefetch: false } do %>
   <i class="ph-file-pdf me-2"></i>
   turbo_frame_tag button
<% end %>

Controller:

def test_button
 @tft = 'Turbo Frame for Button'
end

View (After Response):

<%= turbo_frame_tag "test_button" do %>
   <%= @tft %>
<% end %>

Explanation:

Turbo Frame Tag: Defines a frame ("test_button") that will be dynamically updated.

link_to with data-turbo-frame: Specifies the Turbo Frame (test_button) to target for the update.

Controller Action: Renders the view or partial inside the Turbo Frame when the link is clicked.

Dynamic Update: The content inside the frame gets replaced without reloading the whole page.

Usage:
Best for single-click actions like updating a part of the page or triggering a dynamic update from the controller.

3. Turbo with Respond

Code Overview:

View:

<%= turbo_frame_tag “teste_respond” do %>
   tag
<% end %>

<%= link_to admin_test_respond_path, class: "btn btn-light", data: { turbo_stream: true, turbo_prefetch: false } do %>
   <i class="ph-file-pdf me-2"></i>
   turbo_frame_tag respond
<% end %>

Controller:

def test_respond
 respond_to do |format|
   format.turbo_stream {
   render turbo_stream: turbo_stream.replace('test_respond', partial: 'test_respond')
   }
 end
end

Partial:

<%= turbo_frame_tag "test_respond" do %>
   turbo with respond
<% end %>

Explanation:

Turbo Stream Response: The respond_to block allows the controller to send a Turbo Stream response instead of HTML.

turbo_stream.replace: Replaces the content inside the "test_respond" frame with the specified partial.

Partial Rendered Inside Turbo Frame: Ensures modularity and clean updates.

Usage:
Ideal for cases where multiple response formats are supported, but you want to prioritize Turbo Stream for seamless updates.

4. Turbo with AJAX

Code Overview:

View:

<%= turbo_frame_tag "test_ajax" do %>
  ttt
<% end %>

<script>
  function makeAjaxRequest() {
    var xhr = new XMLHttpRequest();
    xhr.open('GET', '/path/to/test_ajax', true);

    xhr.onreadystatechange = function() {
      if (xhr.readyState === 4 && xhr.status === 200) {
        var turboFrame = document.getElementById('test_ajax');
        if (turboFrame) {
          turboFrame.innerHTML = xhr.responseText;
        }
      }
    };

    xhr.send();
  }

  var interval = 5000; // 5 seconds
  setInterval(makeAjaxRequest, interval);
</script>

Controller:

def test_ajax
  respond_to do |format|
    format.turbo_stream do
      render turbo_stream: [
        turbo_stream.replace('test_ajax', partial: 'test_ajax')
      ]
    end
  end
end

Partial:

<%= turbo_frame_tag “test_ajax” do %>
   turbo with ajax
<% end %>

Explanation:

AJAX Polling: A JavaScript function (makeAjaxRequest) sends a GET request every 5 seconds to the server endpoint (/path/to/test_ajax).

Turbo Stream Response: The server responds with a Turbo Stream update that replaces the frame’s content.

Dynamic Updates: The page updates asynchronously with new content from the server.

Usage:
Useful for real-time updates or polling mechanisms where the content changes frequently.

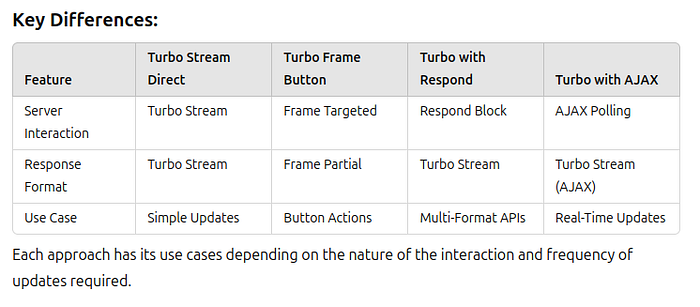

Summarizing:

The piece of code provided is often referred to as a server-side rendered HTML snippet with embedded JavaScript. Here’s a more detailed breakdown of its components:

1. Turbo Frame (Rails ERB):
   The <%= turbo_frame_tag "test_ajax" do %> block is specific to Rails and Turbo. It creates a Turbo Frame, allowing dynamic partial replacements without a full page reload.
2. Embedded JavaScript:
   The <script> block contains client-side JavaScript that makes an AJAX request to the server to fetch updated content for the Turbo Frame.

Common Names:

• Rails View with Embedded JavaScript
• Turbo Frame with AJAX
• Server-Side Rendering with JavaScript Enhancements

In simpler terms, it’s a combination of Rails Turbo Frame and AJAX-powered dynamic content loading.

Thank You Pedro Henrique!

I appreciate you taking the time to explore this guide. If you found it helpful or insightful, I’d be thrilled if you could visit my other articles and show your support with an applause! Your feedback means the world to me and motivates me to create even better content.

Feel free to share your thoughts or ask questions — I’d love to hear from you! 😊
